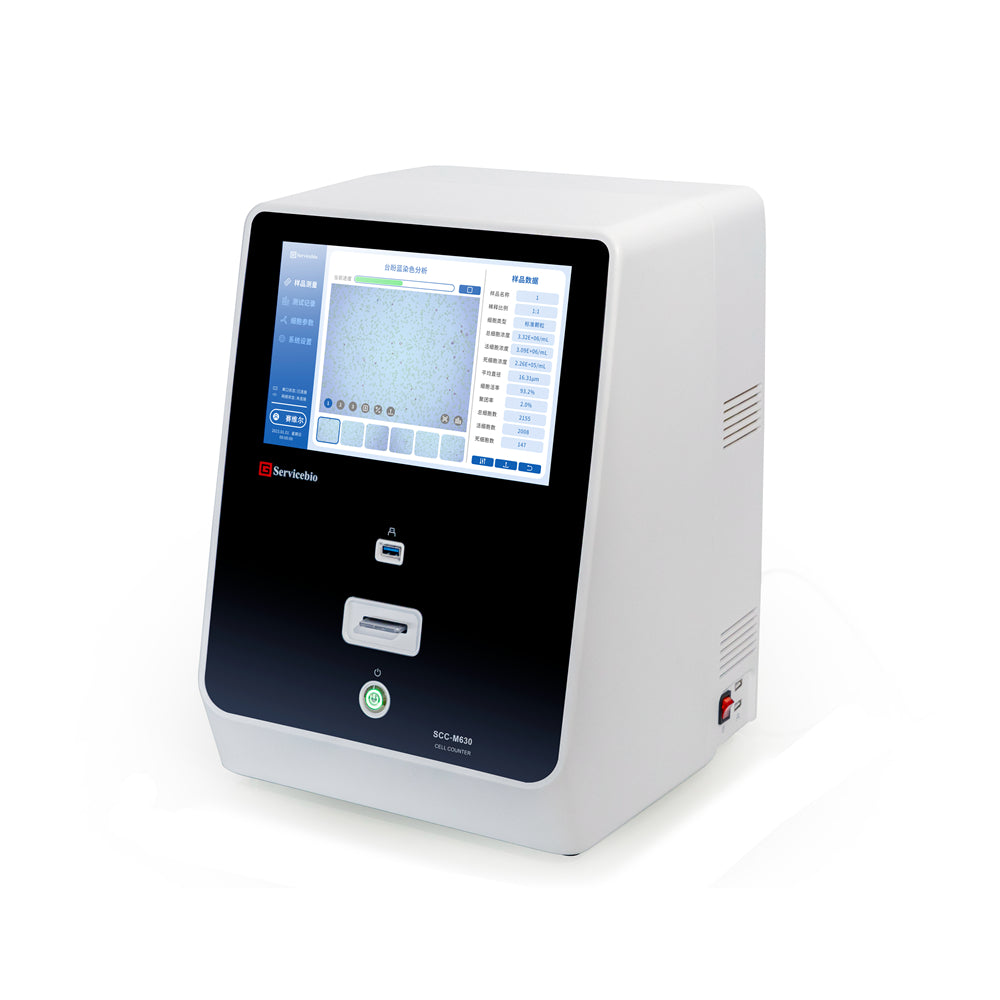

SERVICEBIO Cell Counter

SCC-M630

Get 15% OFF PLUS $500 worth of serological pipettes or cell strainers!

NOW until March 31st as part of our Fiscal Year End Sale 2025!

Contact us or leave a comment in the notes section of your online order, and we'll adjust the price. **Shop now and save big!**

The SERVICEBIO Cell Counter provides six-well high throughput, fully automatic and precise counting, and comprehensive data analysis report.

Product Introduction

The cell counter is a precise and rapid cell analysis system that combines image pattern recognition technology and optical imaging technology. Users can obtain data such as cell number, concentration, and viability with one click, and display the morphology of cells.

---

Product Features

1. It can effectively deconvolute clumps of cells for accurate counting.

2. It can effectively distinguish cellular and non-cellular components, eliminate interference, and ensure accurate counting.

3. It features automatic focusing and automatic calibration.

4. It provides 3 fields of view for each sample to enhance the accuracy.

5. It is suitable for various cell types and application fields.

6. With 6-well high-throughput design, it offers fully automatic and precise counting without compromising productivity.

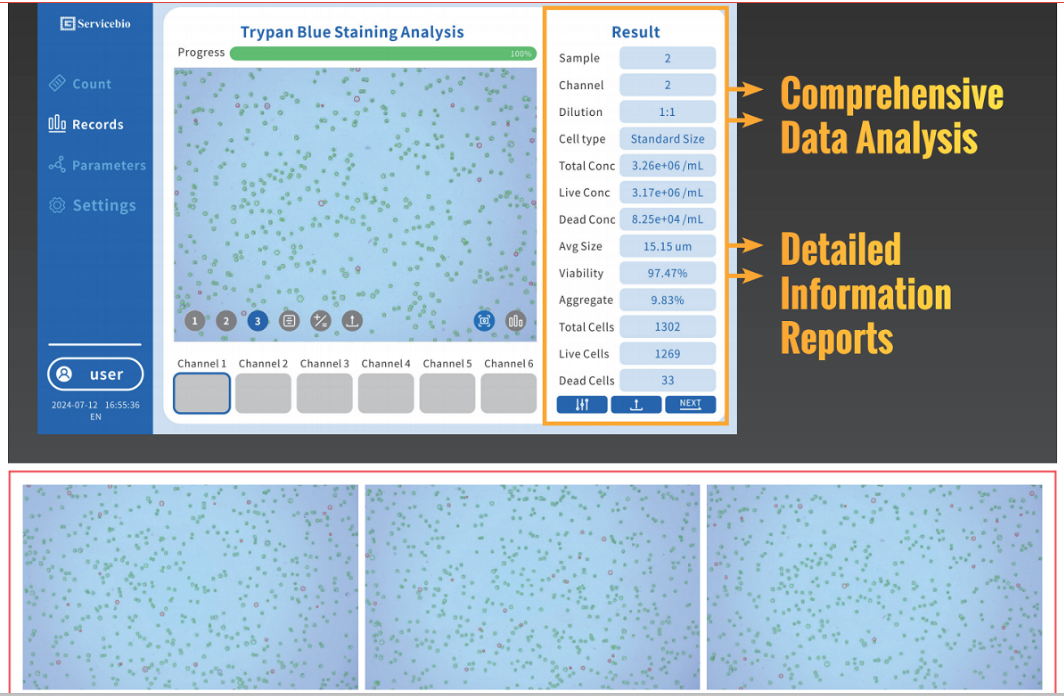

7. It provides comprehensive data analysis and detailed information reports.




---

Product Parameters

Product Parameters	Value
Dimensions	287x283x388 mm
N.W.	9.6kg
Power	70W
Electrical parameters	12V
Operating temperature	10-40°C
Ambient humidity	<80%
Consumable type	Disposable counting chamber
Single detection throughput	6 times
Consumable throughput	6-channel
Counting mode	Bright field/Trypan blue staining
Focusing method	Auto-focus
Sample introduction method	Automatic sample feeding
Pixel of material machine for pasting group	6.3 million CMOS
Bright field light source	LED light
Optical magnification	3X magnification
Field of view image	Single channel with 3 views of photography
Display module resolution	LCD 10.1" multi-touch 1280X800
Image resolution	3072x2048
Image format	JPG
Result output format	JPG/PDF/CSV
Storage space	256G
Screen size	10,1"
Storage record	1000 pcs
Sample type	Suspension-cultured cells/Adherent-cultured cells/Mammalian cells Human cells/PBMC and other cells
Cell concentration	5×104-1.5×107cells/mL
Optimal concentration range	5×105-1×107cells/mL
Cell diameter	5-60μm
Counting time	Single channel < 205
Sample volume	10μL
