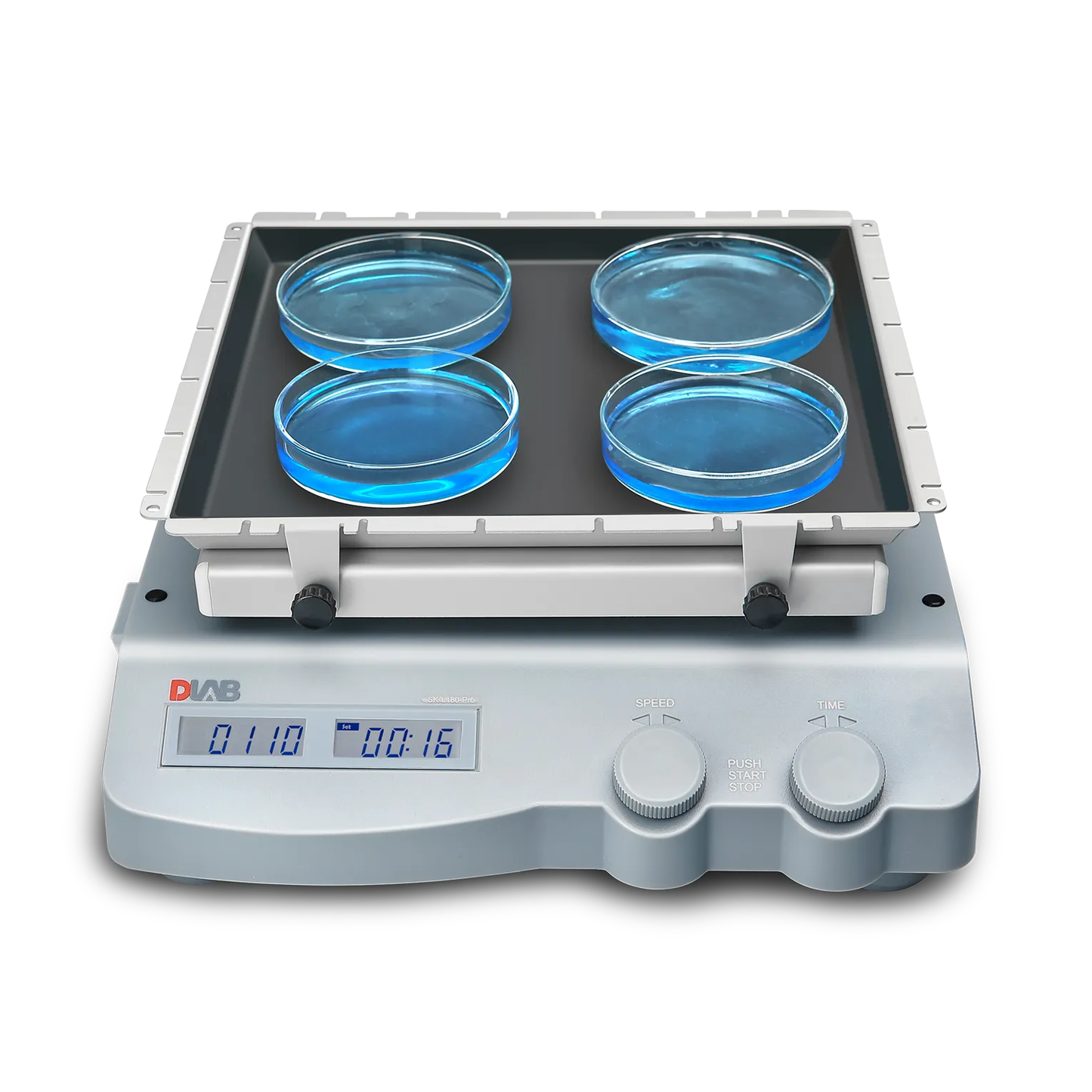

DLAB SK-L180-Pro LCD Digital Linear Shaker

SK-L180

Talk to a sales rep to request a quote

SK-L180-Pro LCD Digital Linear Shaker

•  Linear reciprocating shaking action

•  2.5kg with platform

•  Independent LCD display for speed andtime

• Speed range of 100-350rpm

• Maintenance- free brushless DC motor

• Over speed detection and protection

• Wide range of platforms for use with a variety of vessels

Adaptors and Accessories

Note: The List Price includes:

-Bar for SK180.1 Universal attachment, black

For all  other  accessories  -see the pictures as well as this attached description on adaptors and accessories, download here.

Ask us for the additional accessories

Specifications

Parameter	Value
Motion type	Linear Shaker
Amplitude	4mm
Speed range	100-350rpm
Speed display	LCD
Timer display	LCD
Time settings range	1min-19h59min
Data connector	RS232
Max. load capacity (with platform)	2.5kg
Motor type	Brushless DC motor
Motor rating input	28W
Motor rating output	15W
Power	30W
Voltage	100-240V
Frequency	50/60Hz
Dimension[W×D×H]	300X340X100mm
Work plate Dimension [W x D]	250×245mm
Weight	8.1kg
Permissible ambient temperature	5-40℃
Permissible ambient humidity	80% RH
Protection class	IP21
