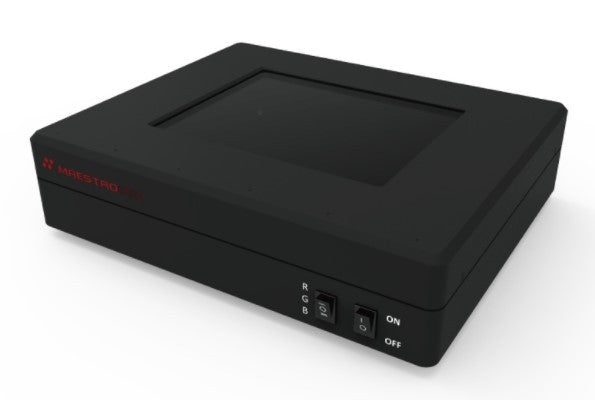

MAESTROGEN UltraBright LED Transilluminator

GLB-17

Transilluminator

Features

-Safe to use, as you are not working with UV

• Providing robust R/G/B LEDs for excitation

• Three wavelengths supported in a single transilluminator

• Delta LED configuration

• Providing a high degree of uniformity across entire viewing area

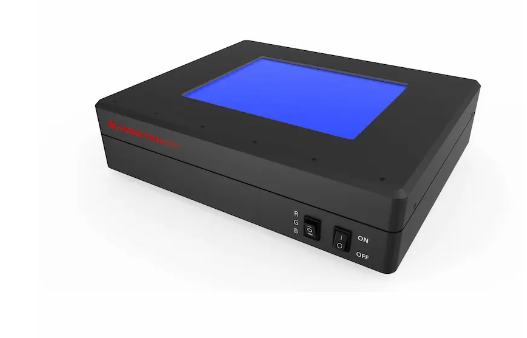

This unit comes pre-installed with an Amber filter lid for the BLUE LED fluorescence.

 More information on the transilluminators can be found here

Specifications

• Illumination type: LED

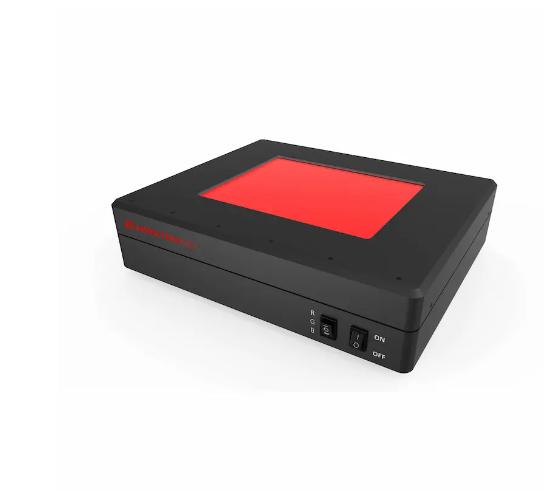

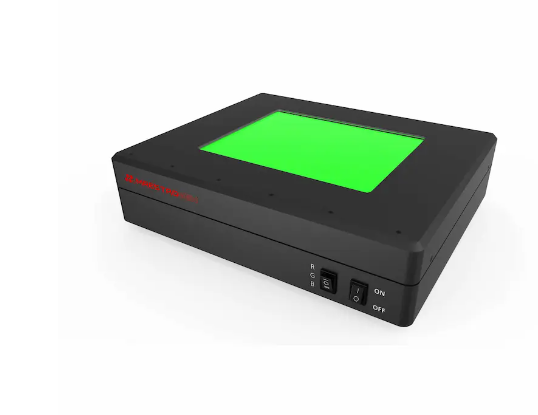

• Wavelength (nm): 470nm (Blue), 530nm (Green), 630nm (Red)

• Dimension (mm): 340L*280W*80H

• Viewing surface (mm): 160D*200W

• LED lamps arrangement: Delta matrix

• LED lifetime: 50,000 hrs

• Weight (Kg): 3.6

• Power: 24V - 1.25A
