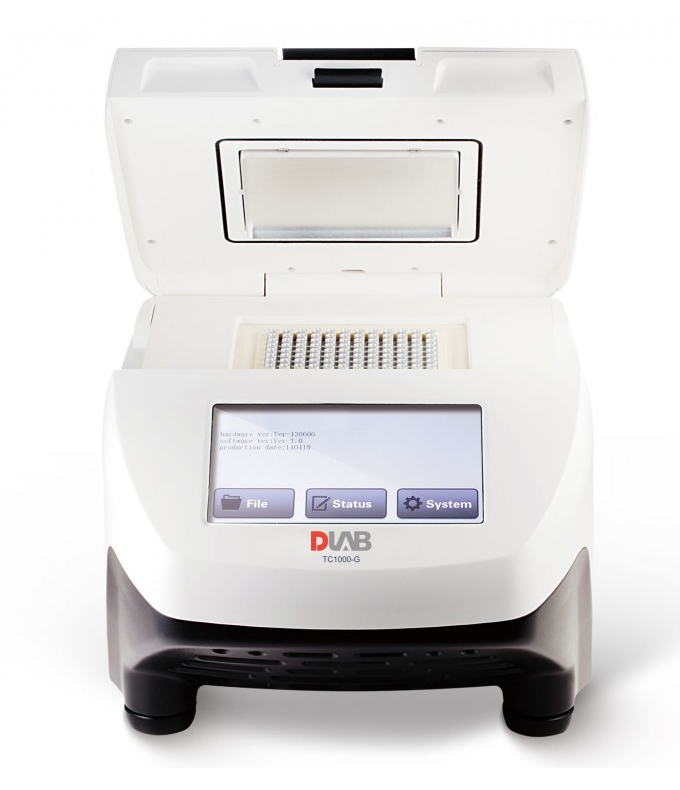

DLAB 96-well Gradient Thermocycler; touch screen, 5 C/s heat and cool.

5064102300TC1000-G

TC1000-G Thermal Cycler Gradient

• High performance Peltier and independent heating segments improving temperature control
• Auxiliary heating mechanism diminishes the "edge effect" and enhance the temperature uniformity
• Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCR time range (-9min 59s~+9min 59s)
• Gradient temperature setting optimizes temperature easily in the single run
• Color touch screen with user friendly interface helps to edit programs easily
• Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
• File customization, multi-file storage
• Power failure protection function, automatic program recovery
• Hot lid auto-off function: If module temperature is lower than 30 °C, the hot lid function will automatically turn off
• Elegant design, excellent precision and accurate, reproducible results and precise PCR optimization
• High performance with advanced thermal gradient technology, state-of-the-art electronics, precision peltier device and flexible user interface.
• The TC1000G is an essential laboratory instrument for molecular biology with applications such as sequencing, gene cloning, gene expression, mutagenesis, and it is also used in areas such as drug discovery, agriculture, food industry, etc.

Cat.No.	5064102300
Sample Capacity	96×0.2mL PCR tube | 12×0.2mL PCR-8 strips | 0.2mL 96 PCR Microplate
Heating Temperature Range	4-105℃
Lid Temperature Range	30-110℃
Temperature Display Accuracy	±0.1℃
Temperature Display Accuracy@55℃	±0.3℃
Temperature uniformity@55℃	<0.3℃
Max. Heating/Cooling Rate	5℃/Sec
Gradient Temperature Setting Range	30-99℃
Gradient Range	1-42℃
Adapter block material	Aluminum
Display	7" LCD 800x480
Input	Touch panel
User defined file system	Max.30 segments 99 cycles, and storage for over 200 files.
Power off protection	Yes
Voltage,Frequency	100-120V/200-240V,50/60Hz cTUVus
Dimension[WxDxH]	280x370x250mm
Weight	11kg
